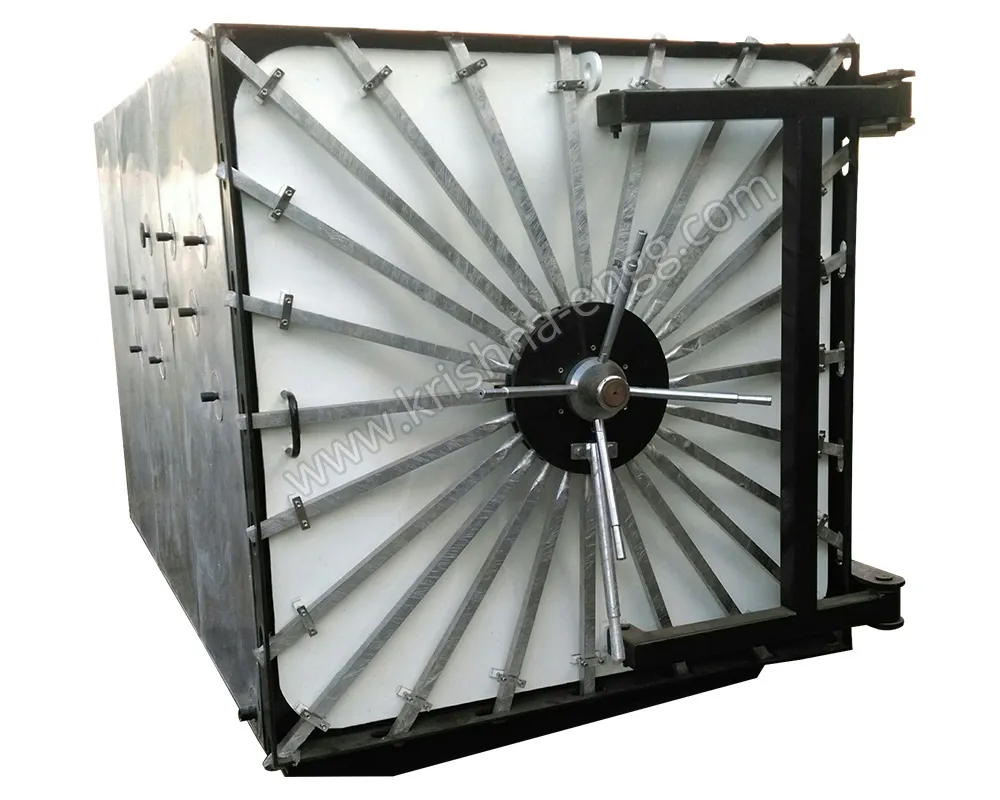

Krishna Engineering is a recognized well-known firm for manufacturing high grade Herbal Sterilizer. The offered sterilizers are designed with a molecular chamber construction, and hugely demanded by the esteem customers for its highly advanced internal cage that make sure o not sticking inside the chamber. We are developed with a team of experienced engineers who use the latest manufacturing technology to design the seal proof sterilizers with innovative radial locking systems. Moreover, our customers can avail the Herbal Sterilizer in single door and double door designs at the most affordable price.
With the support of the team member we engaged in manufacturing the range of equipments with precision and in line with the specifications as per the customer’s requirement. Our developed production facility is equipped with modern cutting machines, grinding machines, welding machines, bending machines and drilling machines for effective production.
TECHNICAL SPECIFICATION | |||||
Model / Capacity | KE - 12 | KE - 24 | KE - 48 | KE - 96 | KE - 192 |
Tray Size : 32" x 16" x 11/4" - 18G |
Tray | Tray | Tray | Tray | Tray |
Rack ( Tray Loading ) | Fixed Angles | Fixed Angles | One Trolley | Two Trolley | Four Trolley |
Dryer Dimension : L mm/inch | 1600 / 64" | 1600 / 64" | 2500 / 100" | 4200 / 168" | 4200 / 84" |
Exterior : W mm/inch | 600 / 24" | 1000 / 40" | 1150 / 46" | 1150 / 46" | 2100 / 84" |
[Approx.] H mm/inch | 1250 / 50" | 1250 / 50" | 2125 / 85" | 2125 / 85" | 2125 / 85" |
Number of Doors | Two | Two | One | Two | Two |
Number of Fans | One | Two | One | Two | four |
Number of Motors & HP [ 400 / 440 Volts 3 Phase A.C. ] |
1 x 0.5 HP | 1 x 0.75 HP | 1 x 1.0 HP | 2 x 1.0 HP | 2 x 2.0 HP |
Electrical Rating | |||||
48 KW | 150° C | 3 KW | 6 KW | 12 KW | 24 KW |
Of Heaters : | |||||
60 KW | 200° C | 3 KW | 9 KW | 15 KW | 30 KW |
96 KW | 300° C | 12 KW | 18 KW | 24 KW | 48 KW |
Average Steam Consumption: [ 3to7 kg /cm2 ] kg / hr. |
10-20 | 15-30 | 25-40 | 30-50 | 40-75 |
